What is an Oil Pressure Sending Unit and How Does It Work?

Introduction

Your car’s oil pressure system is a silent guardian of engine health. The oil pressure sending unit plays a vital role by measuring the oil pressure and sending that information to the gauge or warning light on your dashboard. Without it, you would not know if your engine oil pressure is dangerously low.

Regular checks and timely replacements can prevent costly engine damage. In this article, we explore the function, importance, and troubleshooting tips for the oil pressure sending unit.

What Is an Oil Pressure Sending Unit?

The oil pressure sending unit is a key part of your vehicle’s lubrication monitoring system. Often referred to as an oil sending unit, this pressure-sensitive device measures the oil pressure inside the engine and sends accurate readings to the dashboard.

Mounted near the oil filter or engine block, it works with the engine oil sensor to provide real-time data, helping prevent engine wear, reduce costly repairs, and ensure smooth, efficient performance.

Have questions about your car’s oil system? Contact Guerrero Mobile Mechanics today for expert help.

How the Oil Pressure Sending Unit Works?

The oil pressure sending unit operates through a pressure-sensitive diaphragm or sensor mechanism that reacts to the system’s oil pressure.

Step-By-Step Process

1. Oil Pressure Detection: As the engine runs, the oil pump circulates oil under pressure through the engine’s components.
2. Mechanical-to-Electrical Conversion: The diaphragm inside the unit flexes with changes in oil pressure, converting this mechanical movement into an electrical signal.
3. Signal Transmission: If pressure drops too low, the signal travels to the dashboard oil gauge or activates the warning light.
4. Driver Alert: You receive a real-time indication of oil pressure, allowing you to take quick action before damage occurs.

This simple yet crucial process helps drivers protect their engines from the devastating effects of low oil pressure.

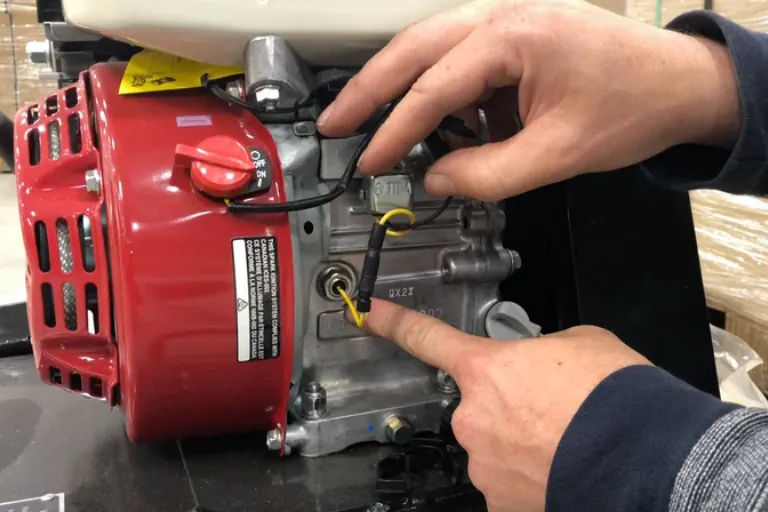

Role of the Engine Oil Sensor

The engine oil sensor complements the oil pressure sending unit. While the sending unit focuses on pressure, the engine oil sensor in some advanced vehicles also monitors oil level and temperature. According to a recent study, it uses a spring-loaded switch and diaphragm to send accurate warnings to the ECU if oil pressure is too high or low, helping protect the engine.

Benefits of the Engine Oil Sensor

It provides multi-parameter monitoring for better diagnostics, giving a clear view of engine performance. Alerting the driver to potential oil-related issues early enhances awareness and helps the oil pressure sending unit provide accurate, reliable engine protection.

Why Does the Oil Pressure Sending Unit Matters?

An oil pressure sending unit is more than just an indicator; it plays a crucial role in protecting your engine. Providing early warnings helps prevent severe damage to engine components before they suffer significant wear.

It ensures proper lubrication and maintains the smooth operation of all moving parts. It can save you money by detecting issues early, potentially avoiding costly repairs.

Common Symptoms of a Faulty Oil Pressure Sending Unit

If your oil pressure sending unit begins to fail, you may experience the following issues:

• Erratic Oil Pressure Readings: The dashboard gauge needle jumps up and down unexpectedly, even when the engine runs normally, making it difficult to know the actual oil pressure.
• Persistent Oil Warning Light: The oil warning light remains constant despite the correct oil level and the engine running without noticeable problems.
• Oil Leakage: Visible spots or dampness appear around the sensor’s mounting point due to worn seals or a cracked housing. This can also lead to gradual oil loss over time.
• Complete Gauge Failure: The oil pressure gauge stops working, leaving you with no information about oil pressure and increasing the risk of driving without proper lubrication.

Causes of Oil Pressure Sending Unit Failure

Several factors can contribute to oil pressure sending unit failure:

1. Age and Wear: Continuous exposure to high engine temperatures and vibrations gradually wears out the sensor’s internal components, leading to inaccurate readings or total failure.

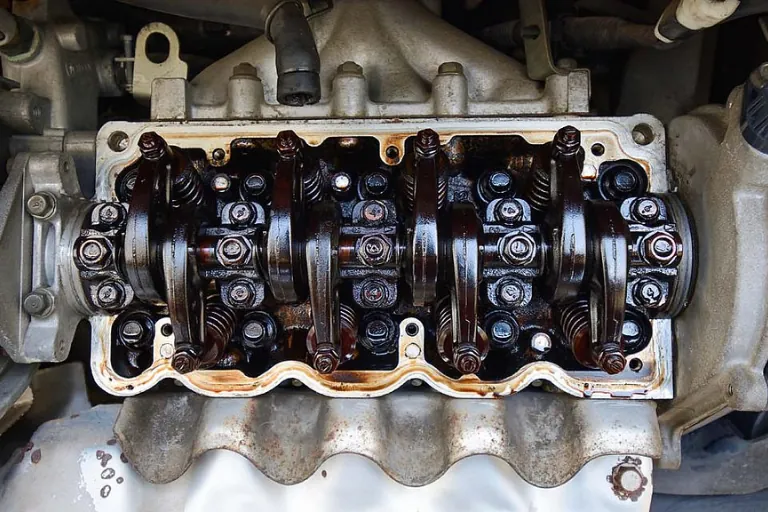

2. Oil Contamination: Sludge, dirt, or debris in the oil can clog the unit’s small openings or damage its diaphragm, interfering with accurate pressure detection.
3. Electrical Faults: Corroded connectors, frayed wiring, or loose terminals can disrupt the signal between the sending unit and the dashboard gauge.
4. Engine Overheating: Prolonged exposure to excessive engine heat weakens the sending unit’s materials and can cause premature breakdown of the internal sensing mechanism.

How to Test an Oil Pressure Sending Unit?

You can confirm whether this component is causing the problem by:

• Checking the oil level and condition before any tests.
• Inspect the wiring and connectors for corrosion or looseness.

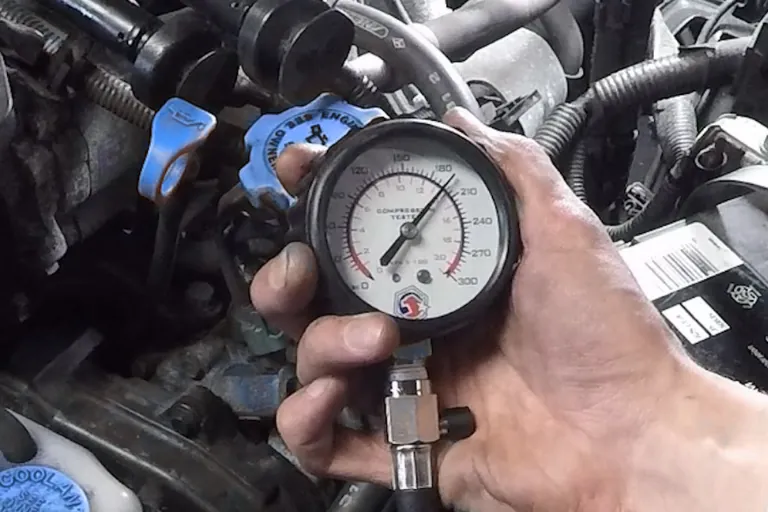

• Use a mechanical oil pressure gauge to compare readings with the dashboard gauge.
• Swapping the unit temporarily (if available) to see if symptoms disappear.

How to Replace an Oil Pressure Sending Unit?

Replacing this component is generally a straightforward process, such as:

1. Locate the unit by referring to your vehicle manual.
2. Disconnect the battery to prevent short circuits.
3. Remove the electrical connector from the unit.
4. Unscrew the old unit with an appropriate socket.
5. Install the new oil pressure sending unit, ensuring it’s tightened correctly.
6. Reconnect the wiring and battery before testing the gauge.

Maintenance Tips for a Healthy Oil Pressure Sending Unit

• Regular oil changes help prevent sensor contamination by keeping the oil clean.
• Using quality oil with the proper viscosity ensures accurate readings from the sensor.
• Inspect the unit during routine servicing to check for leaks or wiring damage.
• Monitor dashboard readings regularly, as any fluctuations could indicate a potential problem.
• Maintaining a stable engine temperature prevents overheating, which can shorten the sensor’s lifespan.

Conclusion

The oil pressure sending unit is a small but vital component that ensures your engine stays properly lubricated and protected. Ignoring faulty readings can lead to severe engine damage and costly repairs.

You can keep your vehicle running smoothly by learning how it works, spotting early symptoms, and performing timely maintenance or replacement. Keep your engine running smoothly and avoid costly repairs. Book your oil pressure diagnostic or replacement with Guerrero Mobile Mechanics and confidently drive.
